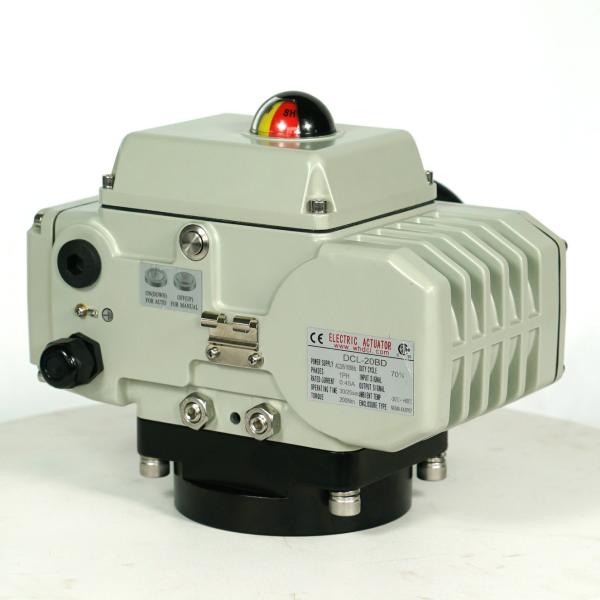

Local/Remote switchable 1/4 Turn 600Nm Compact Actuator

Dynamic Corporation Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Local/Remote switchable 1/4 Turn 600Nm Compact Actuator

  • 1
  • 2

Brand Name : DCL

Model Number : DCL-10/20/40/60/100/160/250

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

Standard Time/Torque : 30S to 75S/100Nm to 2500Nm/885in.lbs to 22125in.lbs

Installation Angle : 360°

Total Weight : 4.5KG to 20KG

Motor Power : 15W to 140W

Ambient Temperature : -25℃~+55℃ / -13°F~+131°F

Protection Grade : IP67 NEMA4/4X

Power Supply : 24VAC/110VAV/220VAC/380VAC/24VDC

Contact Now

Compact actuator with local emergency power off button/manual override standard

Features

  • 1/4 turn operation with mechanical limits
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • Local button to cut off power when emergency issue happens for local/remote control switch
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • Over 10000 times full range life cycle with full rated load
  • Valve position indicator/flat or convex
  • Standard ISO5211 direct mounting
  • Standard manual handle
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested

Description

DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.

DCL can add standard handwheel to its electric actuators, both for common type or explosion proof type. To ensure the safety of manual handling, an emergency power off button is also available to avoid mistake operation. The power off button is on the back of actuator and very easy to reach. Sometimes, we can not confirm the actuator is powered or not, we just press the button. Commonly the handwheel is disconnect states with worm gear, when press handwheel in, it connects to worm gear and can drive the output drive and valve.

Specification

Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm 10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm 19.5Kg
DCL-250 75S/2500Nm 20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm 3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg

Local/Remote switchable 1/4 Turn 600Nm Compact Actuator

Local/Remote switchable 1/4 Turn 600Nm Compact Actuator
