External Signals Ratio Controlled AC24V 10W Quarter Turn Electric Actuator

Quarter turn electric actuator ratio controlled by external signals with control module box

Features

• Quarter turn with proportional to input control signal, mechanical limits
• Full potted multi-function smart control pack resistance to vibration and moisture
• World leading anti-interference ability, control accuracy and sensitivity
• Self-calibrating and problem self-checking function
• Unique integral motor/control pack/ housing design with very small size
• High performance EMC with EFT, ESD and high voltage surge tested for control pack
• Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
• C3 level corrosion resistance with 1000 hours salt spray test
• Heavy duty motor with thermal overload protection
• Standard ISO5211 multi-flange valve mounting
• CSA certificated complied to UL and CSA standard/ CE marked

Specification

Description

DCL smart electric actuator’s dead space is adjustable. Dead space determines the actuator’s sensitivity to input signal. Smaller dead space means more sensitive. But more sensitive does not always mean better. Actually, if input signal is susceptible to external interference, a larger dead space can avoid frequently error starts of actuator and extend its life cycle and stability. On the other hand, if input signal is pure and accuracy control is also required, then a smaller dead space is better.

Another fact to influence valve positioning accuracy is the gap between gears, especially the machining accuracy of the worm gears. Our SQE uses professional testing equipment to detect and ensure every gear’s quality from supplier. Moreover, many special designs and assembling process controls are insisted to make sure no oscillation of gears and low noise with different loads. DCL set the benchmark of compact electric actuator industry of China.

Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.

DCL smart electric actuator

10W Quarter Turn Electric Actuator

AC24V valve Actuator

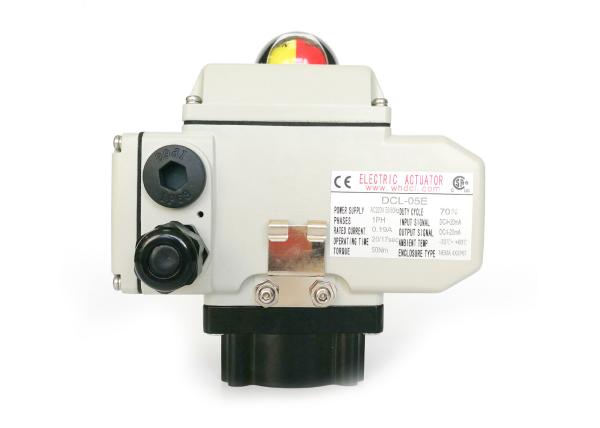

External Signals Ratio Controlled AC24V 10W Quarter Turn Electric Actuator Images
