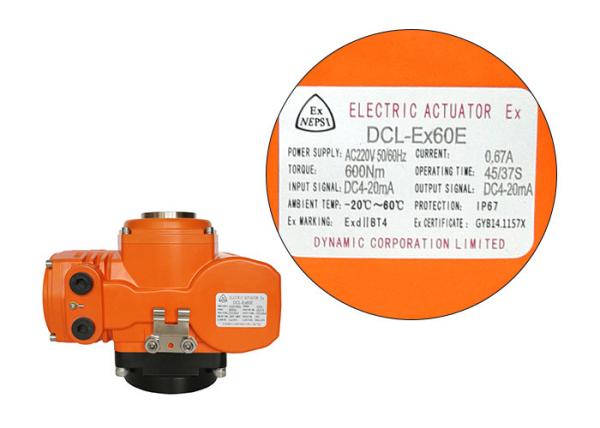

DCL CSA UL 90W 45S 600Nm Modulating Electric Actuator

Product Categories

Quarter Turn Actuator [60]
Multi Turn Actuator [27]
Explosion Proof Electric Actuator [63]
Smart Electric Actuator [41]
Compact Actuator [33]
Fail Safe Electric Actuator [14]
Electric Butterfly Valve [27]
Electric Actuated Ball Valve [20]
3 Phase Actuator [19]
DC Rotary Actuator [30]
PVC Control Valve [6]
Actuator Accessories [8]
Valve Bracket [3]
Quick Open Electric Actuator [15]

Dynamic Corporation Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

DCL CSA UL 90W 45S 600Nm Modulating Electric Actuator

Brand Name : DCL

Model Number : DCL E model

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

Input Signal : 4-20mADC/1-5VDC/2-10VDC

Output Signal : 4-20mADC

Standard Torque : 50Nm to 2500Nm/442in.lbs to 22125in.lbs

Standard Time : 20S to 75S

Power Supply : 24VAC/110VAV/220VAC/380VAC

Motor Power : 6W to 140W

Protection Grade : IP67 NEMA4/4X

Total Weight : 1.2KG to 20KG

Ambient Temperature : -25℃~+55℃ / -13°F~+131°F

Installation Angle : 360°

Contact Now

CSA listed smart modulating electric actuator/complied to UL standard

Features

Quarter turn with proportional to input control signal, mechanical limits
Auto-calibrating with continuously output position monitoring signal as standard
Multi input signal switchable in one smart control pack
Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
Heavy duty motor with thermal overload protection
Fully potted resin plastic packaged controller resistance to vibration and moisture
Stable operation on extra high/low temperature with high humidity
High performance EMC with EFT, ESD and high voltage surge tested for control pack
Standard ISO 5211 multi-flange valve mounting
All metal gears with self-locking worm gear
PTC electronic heating component to prevent condensation in actuator
CSA listed/UL complied/CE marked/RoHS 3.0 tested

Description

DCL modulating type electric actuator is controlled by a smart compact controller that can choose two type input signals for different applications. Commonly, 4-20mA and 2-10V optional, special, 4-20mA and 1-5V optional.In some industry fields those exists two types of input signals, or faces system upgrades, DCL smart modulating type electric actuator can be replacement without changing control pack.

Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.

Specification

Type	DCL-05E	DCL-10E	DCL-20E	DCL-40E	DCL-60E	DCL-100E	DCL-160E	DCL-250E
Power	AC24/110/220	AC24/110/220	AC24/110/220	AC24/110/220	AC24/110/220	AC110/220	AC110/220	AC110/220
Output Torque	50Nm	100Nm	200Nm	400Nm	600Nm	1000Nm	1600Nm	2500Nm
Acting Time	20S	30S	30S	30S	45S	30S	48S	75S
Turning Angle	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°
Motor Power	10W	25W	40W	90W	90W	120W	140W	140W
Rated Current	1.50/0.24/ 0.16A	2.12/0.57/ 0.35A	3.65/0.65/ 0.37A	6.80/1.12/ 0.57A	6.80/1.18/ 0.60A	1.93/0.94A	1.75/0.96A	1.75/0.98A
Total Weight	2.5kg	4.5kg	9kg	9.5kg	10kg	19kg	19.5kg	20kg
Input Signal	4-20mADC,1-5VDC,2-10VDC
Output Singal	4-20mADC
Basic Error	not more than ±1%
Reciprocating Error	not more than 1%
Dead Space	0.5%-5.0% adjustable
Damping Characteristic	0 times
Repeating Error in Actuator	≤1%
Insulating Resistance	AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class	AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class	IP67
Installation Angle	360°at any angle
Electric Interface	Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature	-20℃~+55℃
Optional Function	Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark	Any other input or output signal needed, please specified in purchase order.
