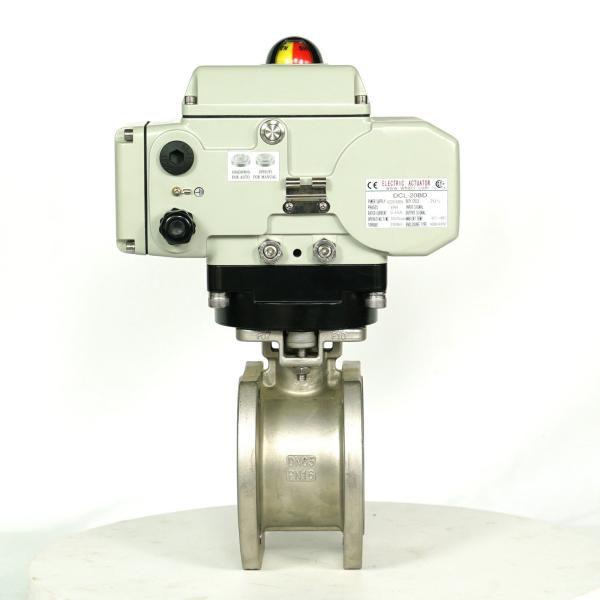

AC220V Smart Valve Actuator

Brand Name : DCL

Model Number : DCL E/GE model

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

product name : smart electric actuator

Application : Industrial field

feature : Visual valve position indicator

Ambient Temperature : -25℃~+55℃ / -13°F~+131°F

Total Weight : 2.5KG to 20KG

Motor Power : 10W to 140W

Protection Grade : IP67 NEMA4/4X

Power Supply : 24VAC/110VAV/220VAC/24VDC

Contact Now

Burner fuel control used smart electric actuator/resistance to electromagnetic interference

Description

DCL small size modulating type electric actuators are widely used in combustion system, especially for burners, both in China and USA. Actuators are installed on the fuel intake duct/pipe to control flame or installed on ventilation valve to control temperature. Since the boiler is always in very high temperature and always has strong electromagnetic interference to surroundings, so the actuator must suffer very severe applications.

Though the controller is very small, but its electric clearance creep distance satisfies the UL standard. It can suffer 2500V surge test, 4000V EFT test, 4000V ESD test to ensure world leading EMC performance. Moreover, it also passed 85/85 test, which is continuously working in 85℃ and 85% humidity for over 600 hours. So it serves top 2 air conditioning companies ,Gree and Midea, in China, and also some top world famous brands such as McQuay, Danfoss, Dunham-bush etc.

Specification:

Actuator Type	Standard Time/Torque	Optional Time/Torque	Turning Angle(Max.range)	Total Weight	Power Supply	Selected Control Circuit
DCL-02	15S/18Nm	7S/9Nm 60S/18Nm	0~90°Adjustable	1.2Kg	DC24V/AC24V AV110V/AC220V	Types of A/B/E/G
DCL-05	20S/50Nm	4S/20Nm 10S/30Nm 60S/50Nm	0~360°Adjustable	2.5Kg	DC24V/AC24V AV110V/AC220V/AC380V	Types of A/B/C/D/E/F/G/H
DCL-10	30S/100Nm	15S/50Nm 60S/100Nm	0~360°Adjustable	4.5Kg	DC24V/AC24V AV110V/AC220V/AC380V	Types of A/B/C/D/E/F/G/H
DCL-20	30S/200Nm	15S/100Nm 60S/200Nm	0~90°Adjustable	9Kg	DC24V/AC24V AV110V/AC220V/AC380V	Types of A/B/C/D/E/F/G/H
DCL-40	30S/400Nm	15S/200Nm 60S/400Nm		9.5Kg
DCL-60	45S/600Nm			10Kg
DCL-100	30S/1000Nm	15S/500Nm	0~90°Adjustable	19Kg	AV110V/AC220V/AC380V	Types of A/B/C/D/E/F/H
DCL-160	48S/1600Nm			19.5Kg
DCL-250	75S/2500Nm			20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ	18Nm		3r	1.2Kg	DC24V	Type MZZ
DCL-10GE	30S/0~100Nm	15S/0~100Nm	0~90°Adjustable	4.5Kg	DC24V±10%	Type GE
DCL-40GE	30S/100~600Nm	15S/100~400Nm	0~90°Adjustable	9.5Kg	DC24V±10%	Type GE

Product Name:	Smart Electric Actuator
Installation Angle:	360°
Output Signal:	4-20mA
Total Weight:	2.5KG To 20KG
Protection Grade:	IP67 NEMA4/4X
Application:	Industrial Field
Standard Time/Torque:	15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs
Input Signal:	4-20mA Or 2-10V / 1-5V Optional
Ambient Temperature:	-25℃~+55℃ / -13°F~+131°F
Motor Power:	10W To 140W
Power Supply:	24VAC/110VAV/220VAC/24VDC
Feature:	Visual Valve Position Indicator

Features

90° turn with proportional to input control signal
Modulating type for proportional control with 4-20mA/1-5V/2-10V input signal
Self-calibrating with continuously output position monitoring signal as standard
Mechanical over torque protection optional
Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
World-leading EMC, 100% passed EFT, ESD and Surge tests
Stable operation on extra high/low temperature with high humidity
Hard die cast aluminum alloy enclosure with powered coated to resistance corrosion
All metal gear train with self-locking worm gear
CSA listed/UL complied/CE marked/RoHS 3.0 tested
Visual valve position indicator

AC220V Smart Valve Actuator
