DCL 110V On Off Quarter Turn Electric Actuator

Brand Name : DCL

Model Number : DCL-40

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

Delivery Time : 7 working days

Packaging Details : carton/pallet

Contact Now

Dcl Electric Power Regulating Actuaotor Valve Actuator, Quarter Turn Actuator

Model No.:DCL-40 (30s/400Nm)

Installation: ISO 5211 Direct installation

Encloser: G1/2 cable, with water resistance

Optional function: Handle wheel ( with push-off button), 4 limited switches , heater..

Actuator : 30s/400Nm, 110V, ON-OFF 2 position,modulating type feedback position with 4-20mA signal

Valve: Butterfly( DN200), Ball valve(DN125)

Tips: In order to ensure the actuator to work stably and reliably, it is necessary to have enough allowance in selection, it is suggested to have 1.1~1.3 times allowance factor, which is output torque of valve tested with pressure>1.1~1.3 times.

Valve match suggestion:

Actuator type	Butterfly valve(≤PN 1.0Mpa)	Ball valve(≤PN 1.6Mpa)	Vent valve(≤PN 1.0Mpa)
DCL-02	≤DN40	≤32
DCL-05	DN50~DN65	DN40	DN50~DN80
DCL-10	DN80~DN100	DN50~DN65	DN100~DN200
DCL-20	DN125~DN150	DN80~DN100	DN250~DN300
DCL-40	DN200	DN125	DN350~DN450
DCL-60	DN250	DN150	DN500~DN600
DCL-100	DN300	DN200	DN700~DN800
DCL-160	DN350~DN400	DN250	DN900
DCL-250	DN450~DN600	DN300~DN350	DN1000~DN12000
DCL-M02	Suitable for shutoff valve or diaphragm valve under diameter DN80
DCL-M05
DCL-M10

Product Tags:

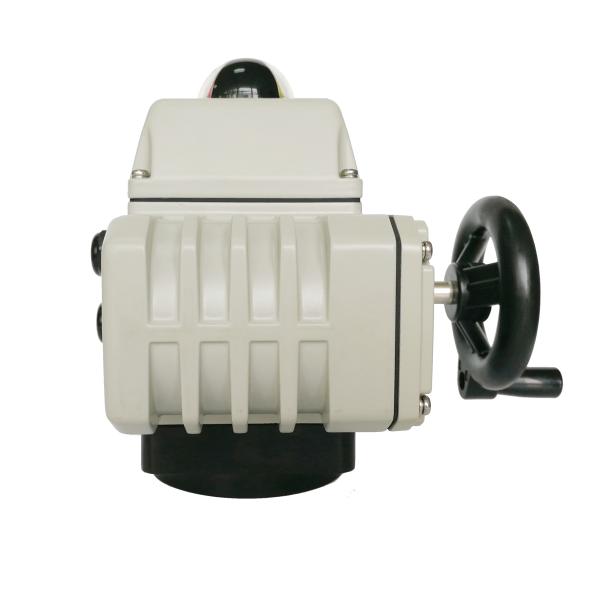

DCL 110V On Off Quarter Turn Electric Actuator Images
